Zespół zaworów odcinających, z funkcją przepłukania od strony zasilania, do węzła Regudis W-HTE

Kod IK

Z81344685

Kod EAN

4026755482294

Kod producenta

1344685

Marka

OVENTROP

Model

Brak modelu

Cena katalogowa netto

Na zapytanie

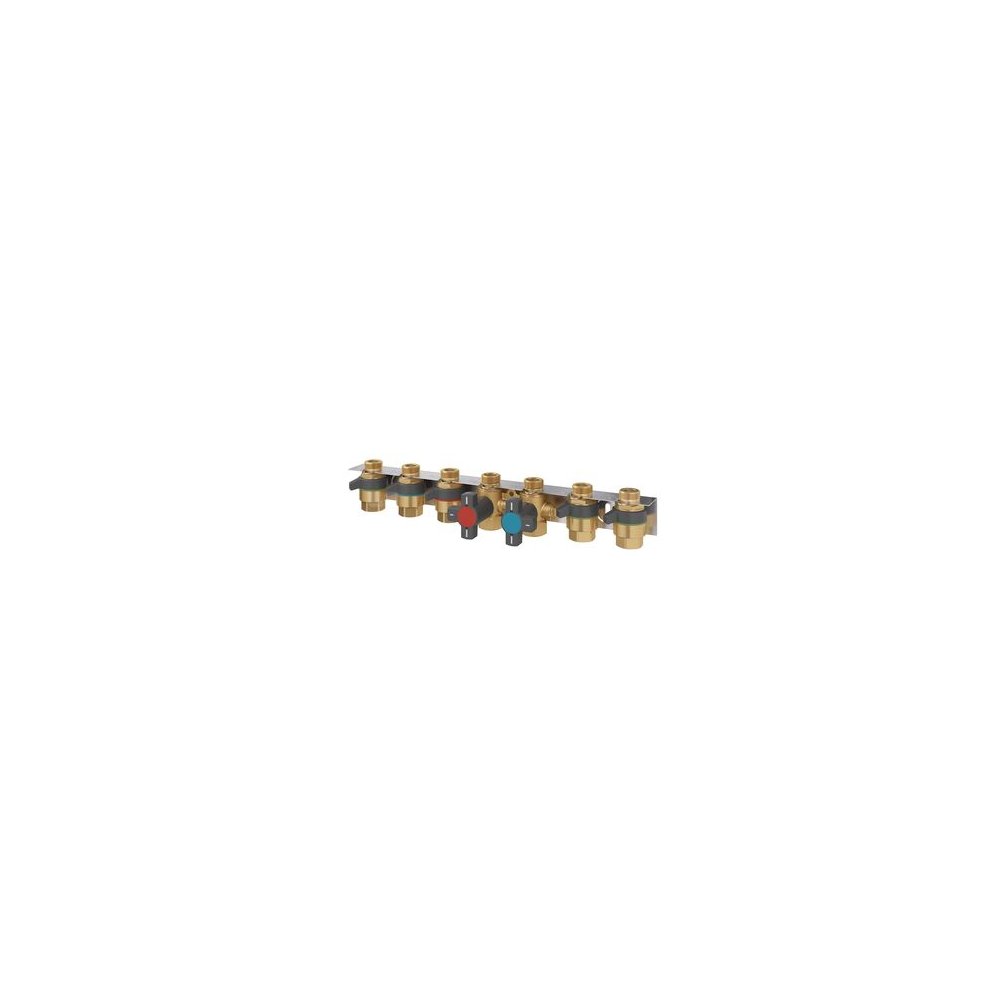

Connection and shutoff set for shutting off all connections of the Regudis W-HTE dwelling station. A flypass fitting offers a flushing function of the supply pipe in addition to the shutoff.

It consists of seven ceramic disc valves and a Flypass fitting mounted in a bracket.

By operating the handle of the ceramic valve discs, the flow is shut off by a ceramic disc inside the valve. The marking on the housing shows in which direction the flow is opened or closed.

The individual ceramic disc valves are identified on the heating side by red coloured rings in the supply and by blue coloured rings in the return. The lead-free ceramic disc valves on the potable water side are identified by green coloured rings.

The Flypass fitting additionally enables a bypass to be opened between the heating supply and the heating return. This allows the heating circuit upstream in the flow direction to be flushed, even without the Regudis W-HTE dwelling station installed.



Technical data:

Nominal size: DN 15
Connection station: G ¾ ET
Connection heat network: Rp ¾ IT
Max. operating temperature: 90 °C
Max. operating pressure: 10 bar
