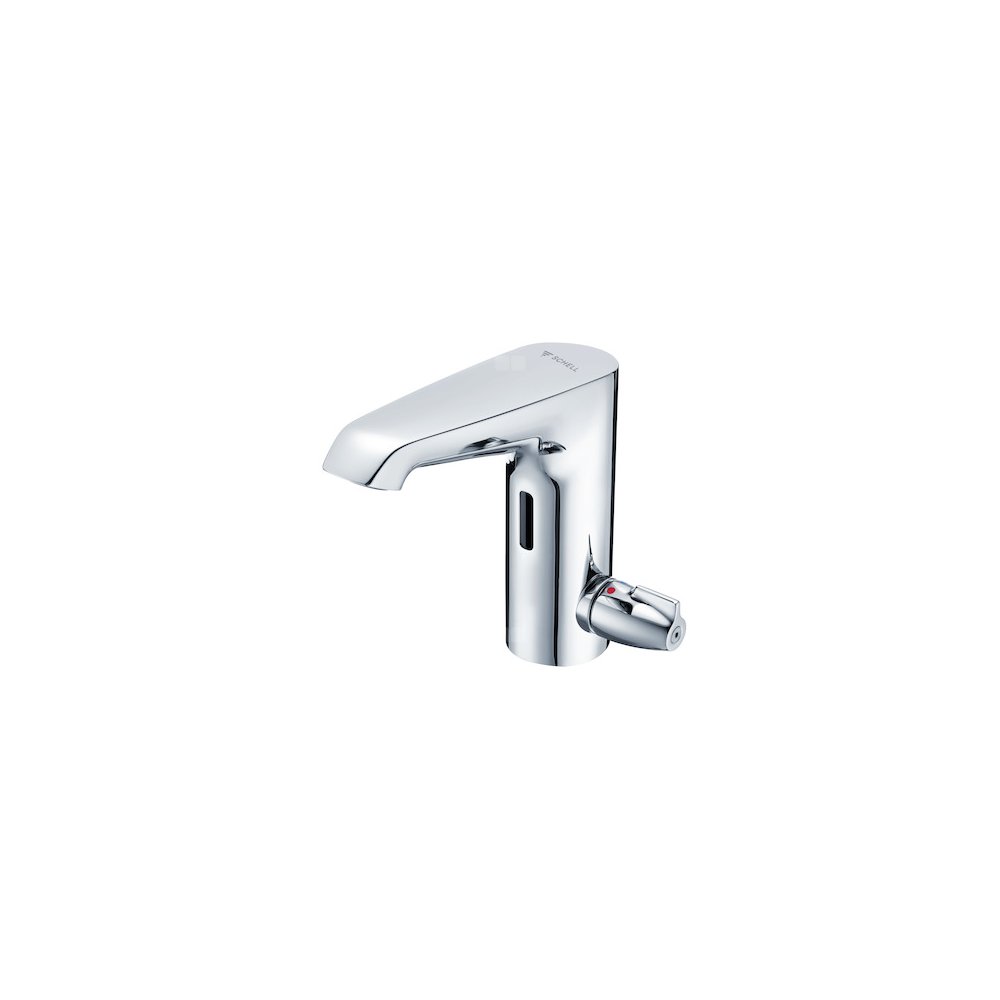

Bateria umywalkowa XERIS E2 -T 9V, chrom, elektroniczna z termostatem typ HDM, MID
Kod IK
41002460699
Kod EAN
4021163171587
Kod producenta
002460699
Marka
SCHELL
Model
Brak modelu
Cena katalogowa netto
697,03 EUR / szt.
Cena katalogowa brutto
857,35 EUR / szt.
,na nagrody
Electronic wash basin tap XERIS E²-T
HD-M mid - high-pressure mixed water, ThermoProtect thermostat
Contactless, sensor-controlled tap with innovative ToF technology. Insensitive against reflective materials such as mirrors, saftety vests, etc. With integrated Bluetooth® interface. Configuration, evaluation and documentation via SCHELL app. Suitable for networking with the SCHELL SWS water management system. Battery operation.Scope of delivery
- Time-of-flight sensor single-hole tap
- ThermoProtect thermostat, conform to EN 1111, temperature lock (factory setting 38 °C), anti-scalding protection if cold water supply fails
- Vandal-resistant all-metal housing
- Time-of-flight sensor electronics (ToF) with automatic adjustment of the sensor range
- Recessed aerator (theft-protected)
- Connection cable, 150 mm, with 3-pin plug connector, protection class IP65
- 6 V axial solenoid valve with pre-filter
- 6 V battery compartment, protection class IP65
- 4x AA alkaline battery 1.5 V
- 2 flexible Clean-Fix S connection hoses, G 3/8 IG x 410 mm, with integrated backflow preventer (EN 1717: EB-type) and pre-filter
- Fastening material for wash basin installation
Technical data
- Setting options via SCHELL App
- Quick configuration via preset operating modes (save electricity / save water / comfort)
- Individual settings in expert mode (sensor range, sensor measuring interval, person detection, max. runtime, run-on time)
- Stagnation flush (off / at intervals / smart demand-based flush taking usage into account / at fixed times [day(s), time])
- Continuous flush for thermal disinfection, triggering via app (3 - 10 min)
- Continuous flow, triggering via app (15 - 600 s)
- Cleaning stop, triggering via app or proximity reflex (off / 60 - 360 s)
- S_Durchfluss: max. 5 l/min pressure independent
- Flow pressure: 1.0 - 5.0 bar
- Max. Resting pressure: 8 bar
- Max. operating temperature: 70 °C (80 °C for thermal disinfection)
- Connection: 2x G 3/8 IG
- Material: Housing Brass
- Surface: Chrome
- Noise class: applied
Note
- Previous Electronic washbasin tap XERIS E-T 00 232 06 99 expected to be available until II. quarter 2025.
SCHELL’s wash basin taps combine water-saving technologies with an appealing and timeless design plus optimum hygiene. They are easy to use while also being robust and durable. Many electronic models are available, which offer an attractive range of extra functions like the option of automatic stagnation flushes or networking with the SCHELL SWS Water Management System.
Note
- Previous Electronic washbasin tap XERIS E-T 00 232 06 99 expected to be available until II. quarter 2025.
Dane produktu
| Grupa produktowa | Wash basin draw-off taps |
|---|---|
| Grupa towarowa | Wash basin and shower fittings |
| Kraj pochodzenia | DE |
