Bateria umywalkowa CELIS E2 typ ND-M 230 V, chrom, z zasilaczem podtynkowym
Kod IK
41002960699
Kod EAN
4021163172201
Kod producenta
002960699
Marka
SCHELL
Model
Brak modelu
Cena katalogowa netto
723,32 EUR / szt.
Cena katalogowa brutto
889,68 EUR / szt.
,na nagrody

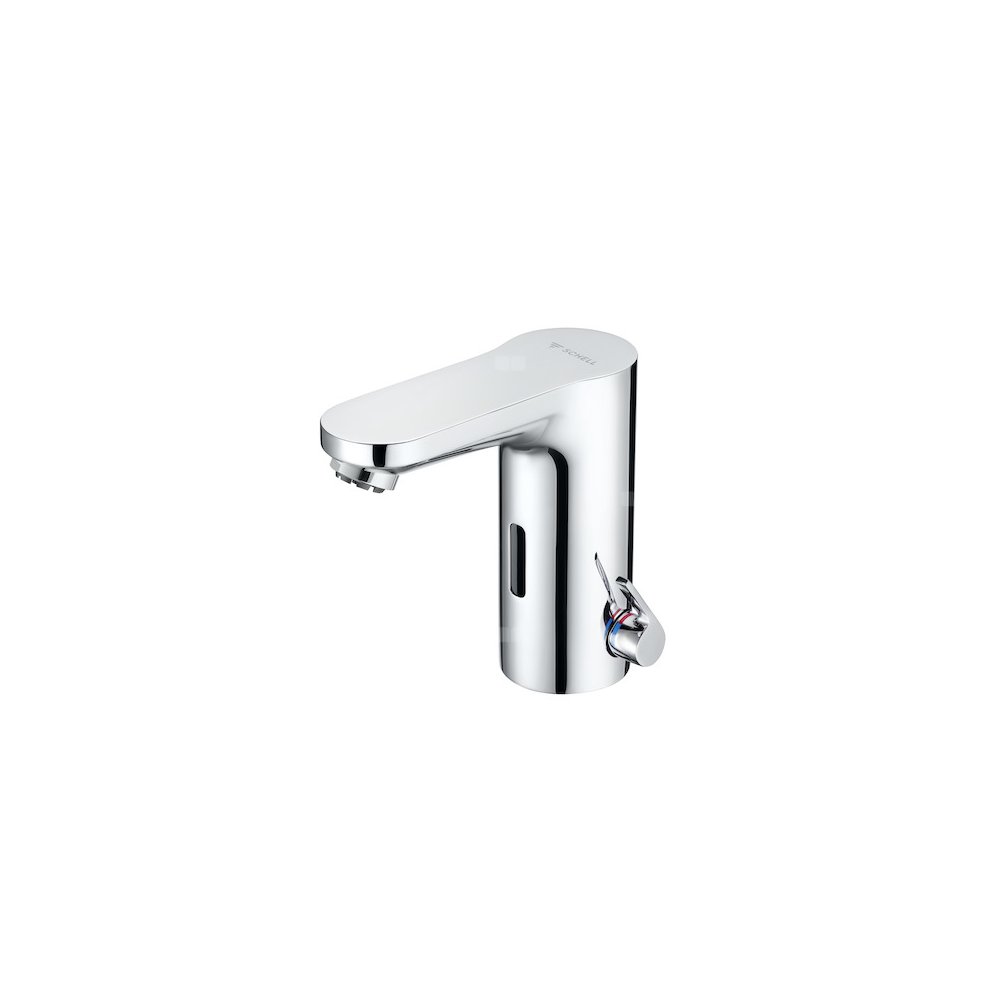

Electronic wash basin tap CELIS E²
ND-M - low pressure mixed water
Contactless, sensor-controlled tap with innovative ToF technology. Insensitive against reflective materials such as mirrors, saftety vests, etc. With integrated Bluetooth® interface. Configuration, evaluation and documentation via SCHELL app. Suitable for networking with the SCHELL SWS water management system. Mains operation. For open hot water storage tanks.Scope of delivery
- Time-of-flight sensor single-hole tap
- Vandal-resistant all-metal housing
- Time-of-flight sensor electronics (ToF) with automatic adjustment of the sensor range
- Aerator
- Connection cable, 240 mm, with 3-pin plug connector, protection class IP65
- 6 V axial solenoid valve with pre-filter
- Temperature controller with hot water restrictor
- Concealed transformer 9 VDC, 100-240 VAC, 50-60 Hz
- Pre-filter with flow restrictor
- 3 flexible Clean-Fix S connection hoses, G 3/8 IG x 380/500 mm
- Fastening material for wash basin installation
Technical data
- Setting options via SCHELL App
- Quick configuration via preset operating modes (save electricity / save water / comfort)
- Individual settings in expert mode (sensor range, sensor measuring interval, person detection, max. runtime, run-on time)
- Stagnation flush (off / at intervals / smart demand-based flush taking usage into account / at fixed times [day(s), time])
- Continuous flush for thermal disinfection, triggering via app (3 - 10 min)
- Continuous flow, triggering via app (15 - 600 s)
- Cleaning stop, triggering via app or proximity reflex (off / 60 - 360 s)
- S_Durchfluss: max. 5 l/min pressure independent
- Flow pressure: 1.0 - 5.0 bar
- Max. Resting pressure: 8 bar
- Max. operating temperature: 70 °C (80 °C for thermal disinfection)
- Connection: 3x G 3/8 IG
- Material: Housing Brass
- Surface: Chrome
- Certificates: PA-IX 10333/IO
- Noise class: I
- Flow class: O
Note
- Available in IV. Quarter 2025.
SCHELL’s wash basin taps combine water-saving technologies with an appealing and timeless design plus optimum hygiene. They are easy to use while also being robust and durable. Many electronic models are available, which offer an attractive range of extra functions like the option of automatic stagnation flushes or networking with the SCHELL SWS Water Management System.
Note
- Available in IV. Quarter 2025.
Dane produktu
| Grupa produktowa | Wash basin draw-off taps |
|---|---|
| Grupa towarowa | Wash basin and shower fittings |
| Kraj pochodzenia | DE |
