Bateria umywalkowa CELIS E2 9V, chrom typ HDM elektroniczna
Kod IK
41002780699
Kod EAN
4021163171648
Kod producenta
002780699
Marka
SCHELL
Model
Brak modelu
Cena katalogowa netto
440,55 EUR / szt.
Cena katalogowa brutto
541,88 EUR / szt.
,na nagrody

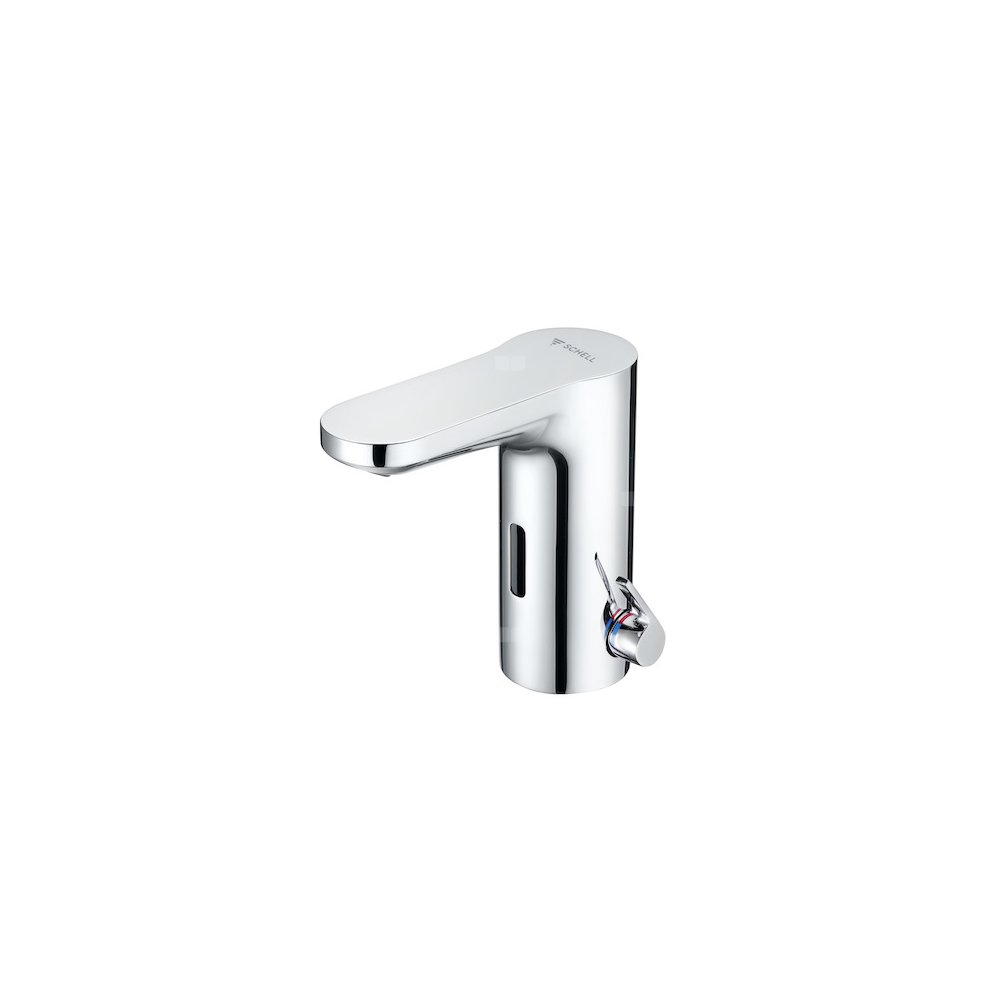

Electronic wash basin tap CELIS E²
HD-M - high-pressure mixed water
Contactless, sensor-controlled tap with innovative ToF technology. Insensitive against reflective materials such as mirrors, saftety vests, etc. With integrated Bluetooth® interface. Configuration, evaluation and documentation via SCHELL app. Suitable for networking with the SCHELL SWS water management system. Battery operation.Scope of delivery
- Time-of-flight sensor single-hole tap
- Vandal-resistant all-metal housing
- Time-of-flight sensor electronics (ToF) with automatic adjustment of the sensor range
- Recessed aerator (theft-protected)
- Connection cable, 240 mm, with 3-pin plug connector, protection class IP65
- 6 V axial solenoid valve with pre-filter
- Temperature controller with hot water restrictor
- 6 V battery compartment, protection class IP65
- 4x AA alkaline battery 1.5 V
- 2 flexible Clean-Fix S connection hoses, G 3/8 IG x 410 mm, with integrated backflow preventer (EN 1717: EB-type) and pre-filter
- Fastening material for wash basin installation
Technical data
- Setting options via SCHELL App
- Quick configuration via preset operating modes (save electricity / save water / comfort)
- Individual settings in expert mode (sensor range, sensor measuring interval, person detection, max. runtime, run-on time)
- Stagnation flush (off / at intervals / smart demand-based flush taking usage into account / at fixed times [day(s), time])
- Continuous flush for thermal disinfection, triggering via app (3 - 10 min)
- Continuous flow, triggering via app (15 - 600 s)
- Cleaning stop, triggering via app or proximity reflex (off / 60 - 360 s)
- S_Durchfluss: max. 5 l/min pressure independent
- Flow pressure: 1.0 - 5.0 bar
- Max. Resting pressure: 8 bar
- Max. operating temperature: 70 °C (80 °C for thermal disinfection)
- Connection: 2x G 3/8 IG
- Material: Housing Brass
- Surface: Chrome
- Certificates: PA-IX 10332/IO, DVGW applied
- Noise class: I
- Flow class: O
Note
- Previous Electronic washbasin tap CELIS E 01 229 06 99 expected to be available until II. quarter 2025.
SCHELL’s wash basin taps combine water-saving technologies with an appealing and timeless design plus optimum hygiene. They are easy to use while also being robust and durable. Many electronic models are available, which offer an attractive range of extra functions like the option of automatic stagnation flushes or networking with the SCHELL SWS Water Management System.
Note
- Previous Electronic washbasin tap CELIS E 01 229 06 99 expected to be available until II. quarter 2025.
Dane produktu
| Grupa produktowa | Wash basin draw-off taps |
|---|---|
| Grupa towarowa | Wash basin and shower fittings |
| Kraj pochodzenia | DE |
